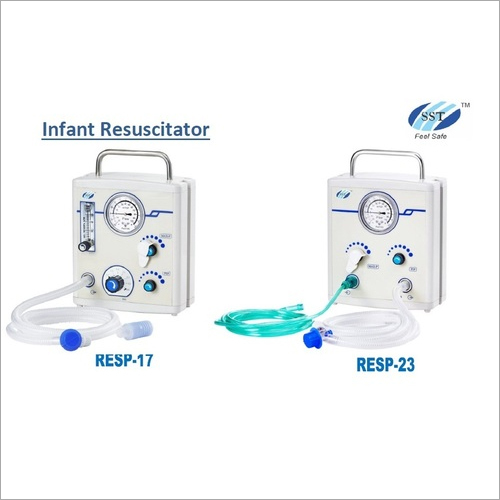

Infant Resuscitator

Infant Resuscitator
Infant Resuscitator
Send Inquiry
Product Code : RESP-17 , RESP-23
Brand Name : S. S. TECHNO MED
Product Description
  • It is mainly used on delivery room, baby wards, NICU that the baby’s maximum weight up to 10KG.
  • Inside an alarm system of differential pressure. When alarming, the safety valve starts automatically and produces the mixture gas continuously to ensure the safety of patients.
  • Adjust the Oxygen concentration from 21% to 100% optionally
  • The range of flow adjustment is 5LPM~15LPM.
  • The MAX-P and PIP are safe, controlled and accurate.
  • The PEEP is constant and accurate.
  • Simple operation and flexible application.
  • The output pressure would not be influenced by the operator experience, training, attention and fatigue.
Technical parameter:
  • Pressure gauge: -2~10kPa (-20~100cmH2O).
  • MAX-P: @0~15LPM ≤6kPa (60cmH2O).
  • PIP: @5~15LPM 0.2~5.7kPa (2~57cmH2O).
  • PEEP: @5~15LPM 0.03~2.3kPa (0.3~23cmH2O).
  • RESP-17: cover with inbuilt Air/oxygen blender.
